REALTIME EMBEDDED COMMUNICATION SYSTEM
Cloud-connected institutional communication infrastructure built using ESP32, Firebase, Flutter, and HUB75E RGB matrix displays for realtime wireless notice broadcasting and centralized display management.
Embedded Controller
Cloud Synchronization
Remote Management App
RGB Matrix Rendering
ENGINEERING PROBLEM
Traditional notice boards used in educational institutions depend on manually updated paper notices, resulting in delayed communication, inefficient maintenance, and limited remote accessibility.
Existing digital display systems often require expensive hardware infrastructure, dedicated backend systems, or lack proper realtime synchronization capability.
This project was designed to develop a low-cost cloud-connected embedded communication platform capable of realtime wireless notice broadcasting, centralized management, and scalable institutional deployment.

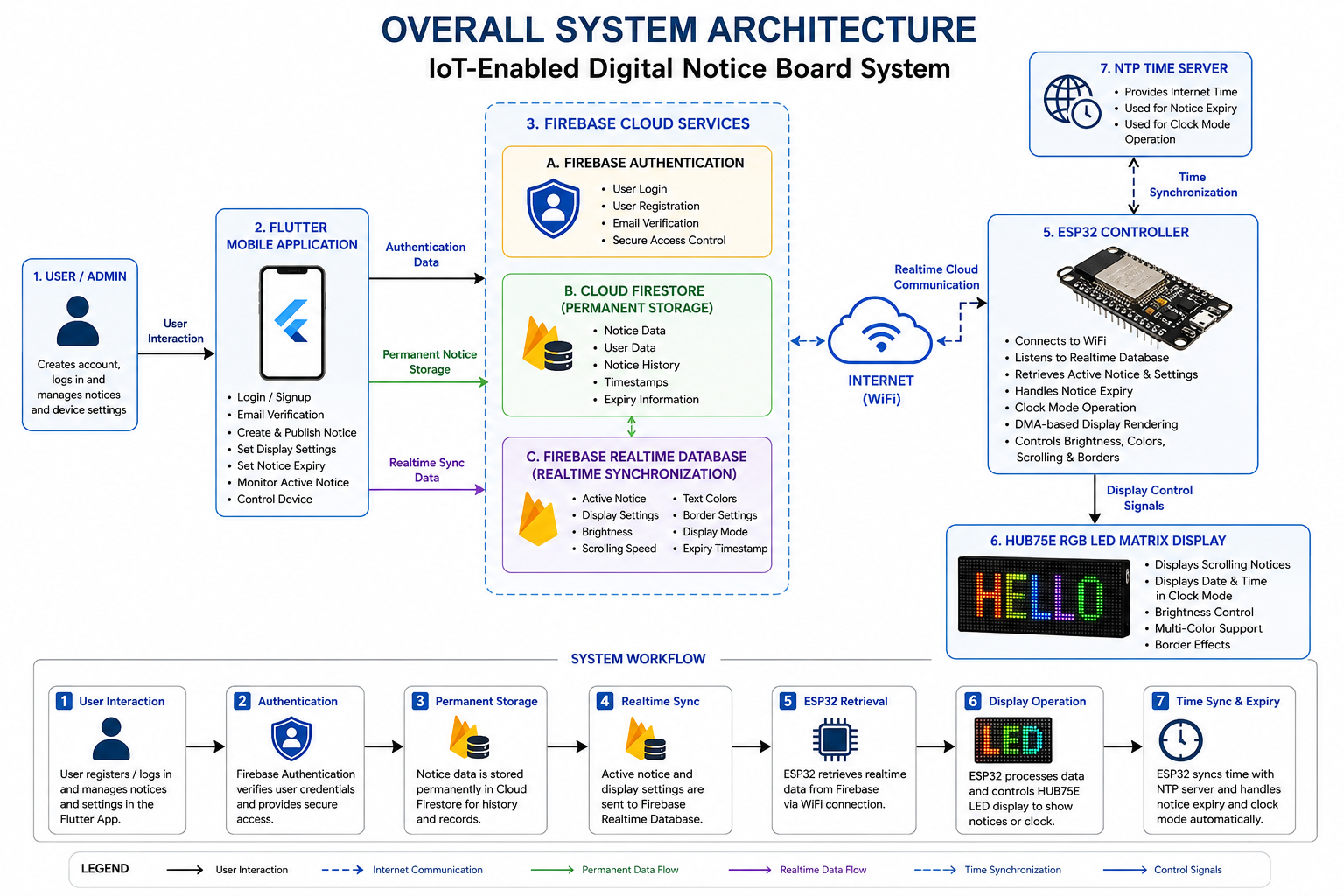

SYSTEM ARCHITECTURE
Flutter mobile application publishes notices and display configuration data.
Firebase Authentication and Realtime Database manage secure cloud synchronization.
ESP32 continuously monitors Firebase through WiFi communication.

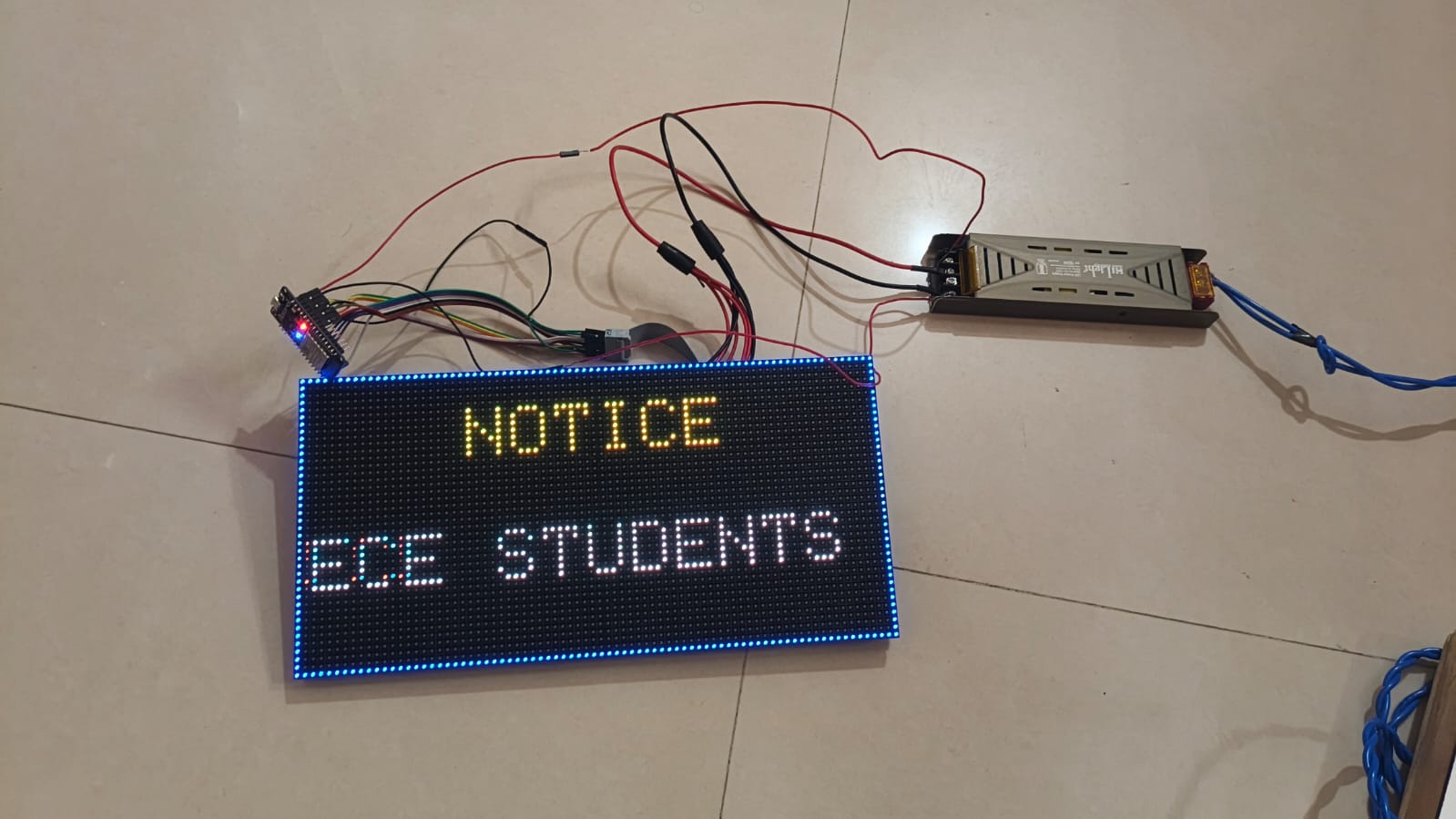

HUB75E RGB matrix updates in realtime with synchronized display rendering.
CORE ENGINEERING FEATURES
Firebase Realtime Database enables stable low-latency synchronization between the Flutter application and ESP32 embedded controller.
DMA-driven rendering architecture improves display refresh stability, scrolling smoothness, and multitasking performance during cloud communication.

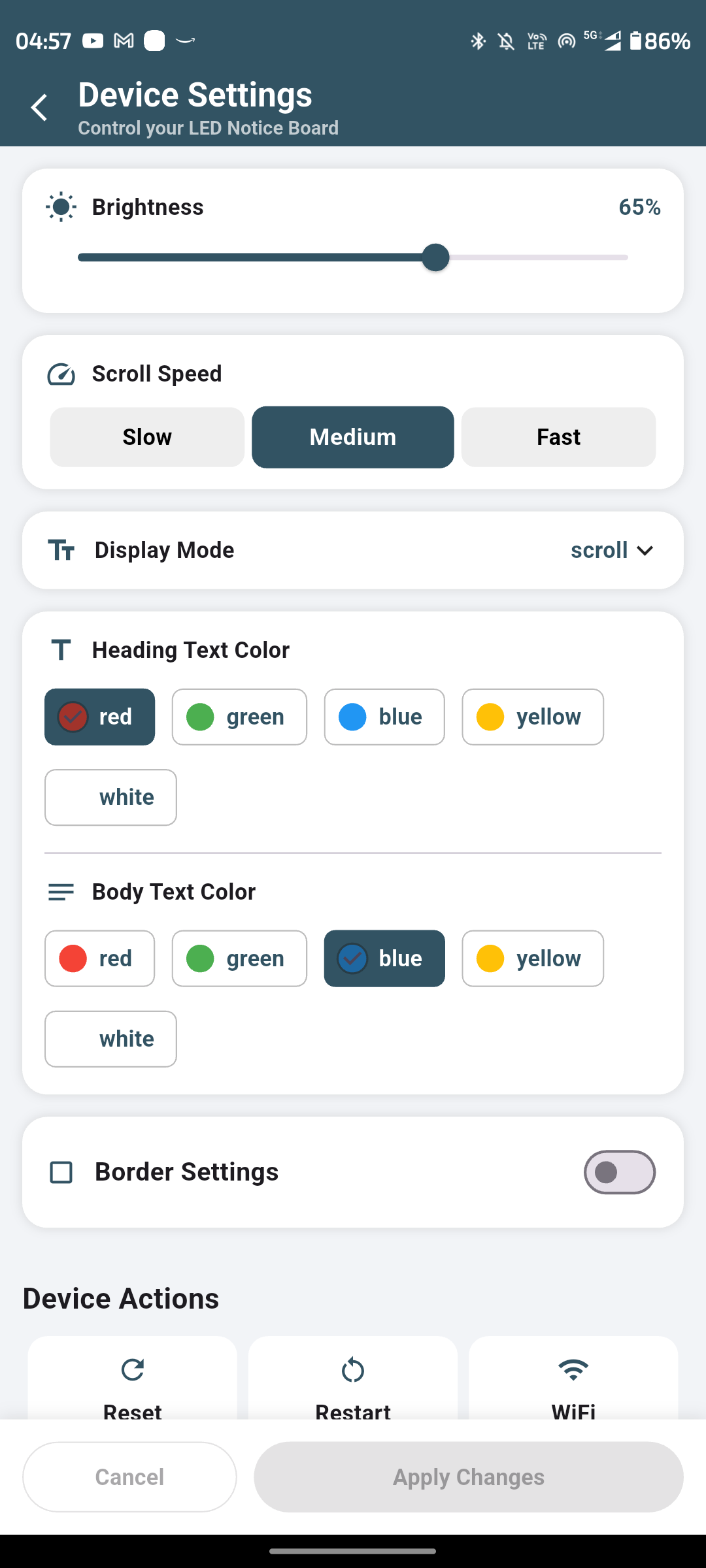

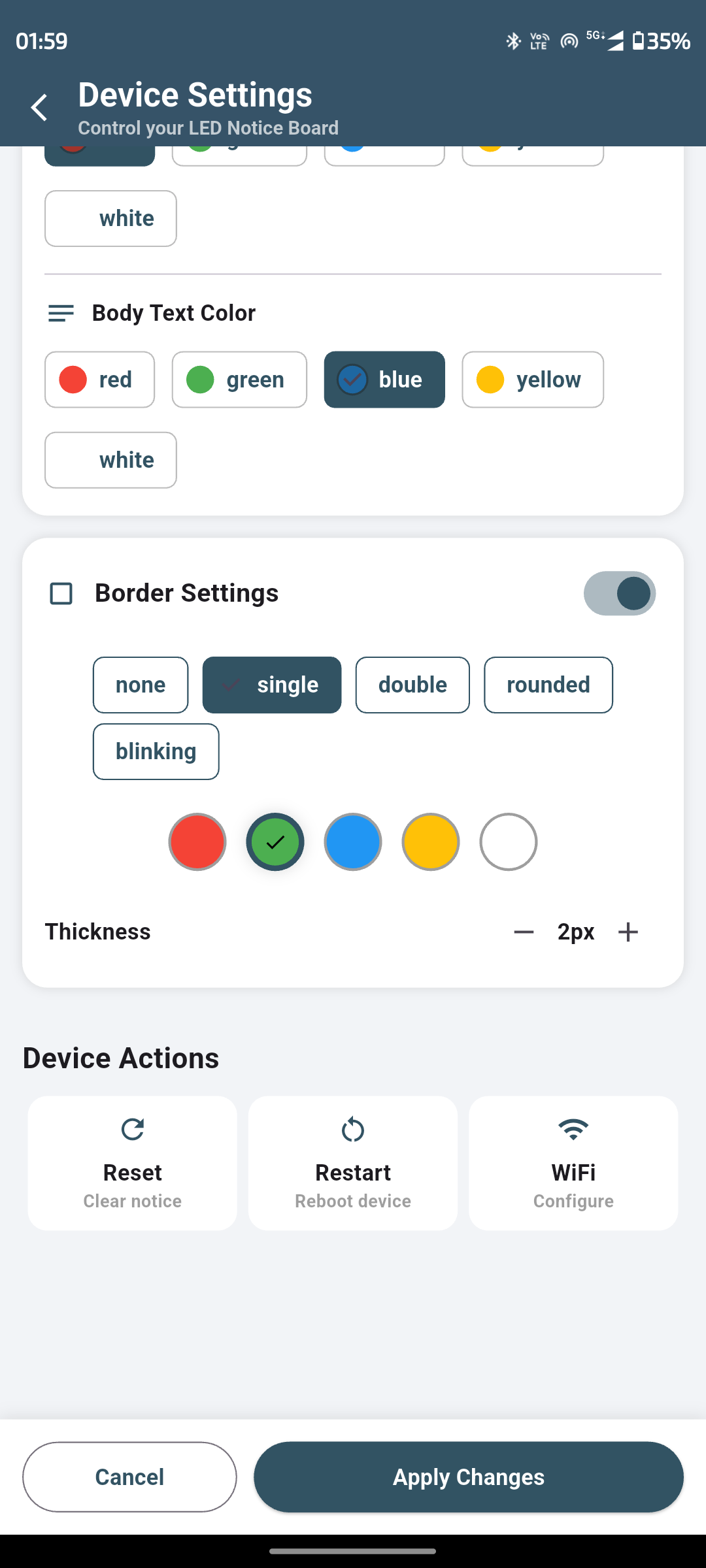

Remotely manage brightness, scrolling speed, border styles, text colors, and display behavior directly from the mobile application.

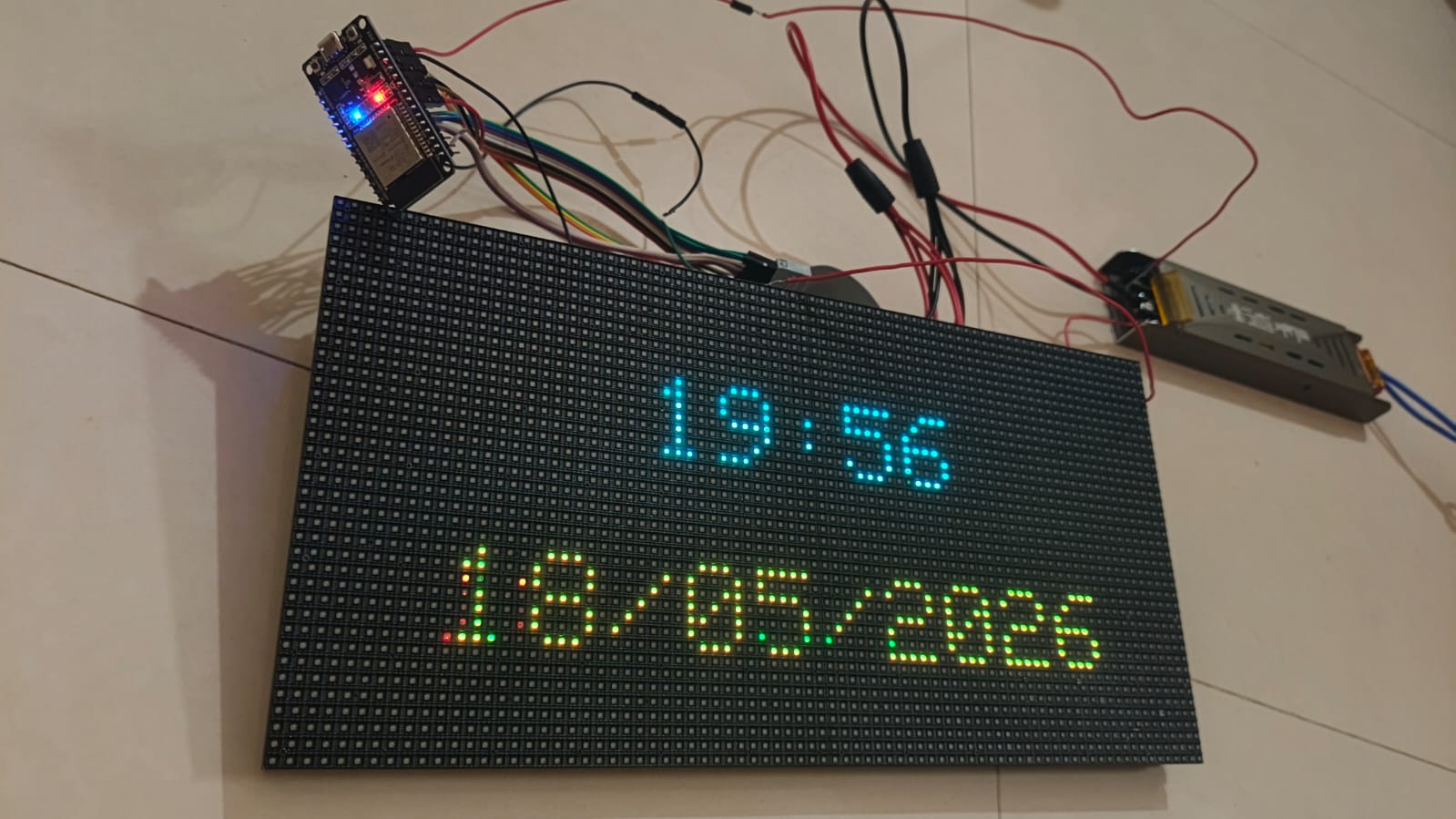

Integrated NTP synchronization enables automatic notice expiry handling and realtime clock mode operation.
REAL WORLD DEPLOYMENT
The system was developed as a deployable institutional communication platform intended for realtime notice broadcasting within educational environments.
Faculty and administration can remotely publish notices through the Flutter application while ESP32-controlled RGB displays automatically synchronize updates through Firebase cloud services.
The modular architecture allows future scalability into multi-display campus-wide communication systems and centralized smart campus infrastructure.
ENGINEERING CHALLENGES
Maintaining stable low-latency communication between Firebase services and ESP32 display updates required optimized synchronization intervals and reliable polling logic.
HUB75E RGB matrix rendering required DMA-based architecture to maintain stable refresh rates and smooth scrolling performance.
Simultaneous handling of WiFi, Firebase SSL communication, JSON processing, and rendering operations required efficient memory utilization.
Stable Firebase SSL communication and realtime synchronization reliability required multiple debugging and optimization cycles.
TECHNOLOGY STACK
PROJECT GALLERY

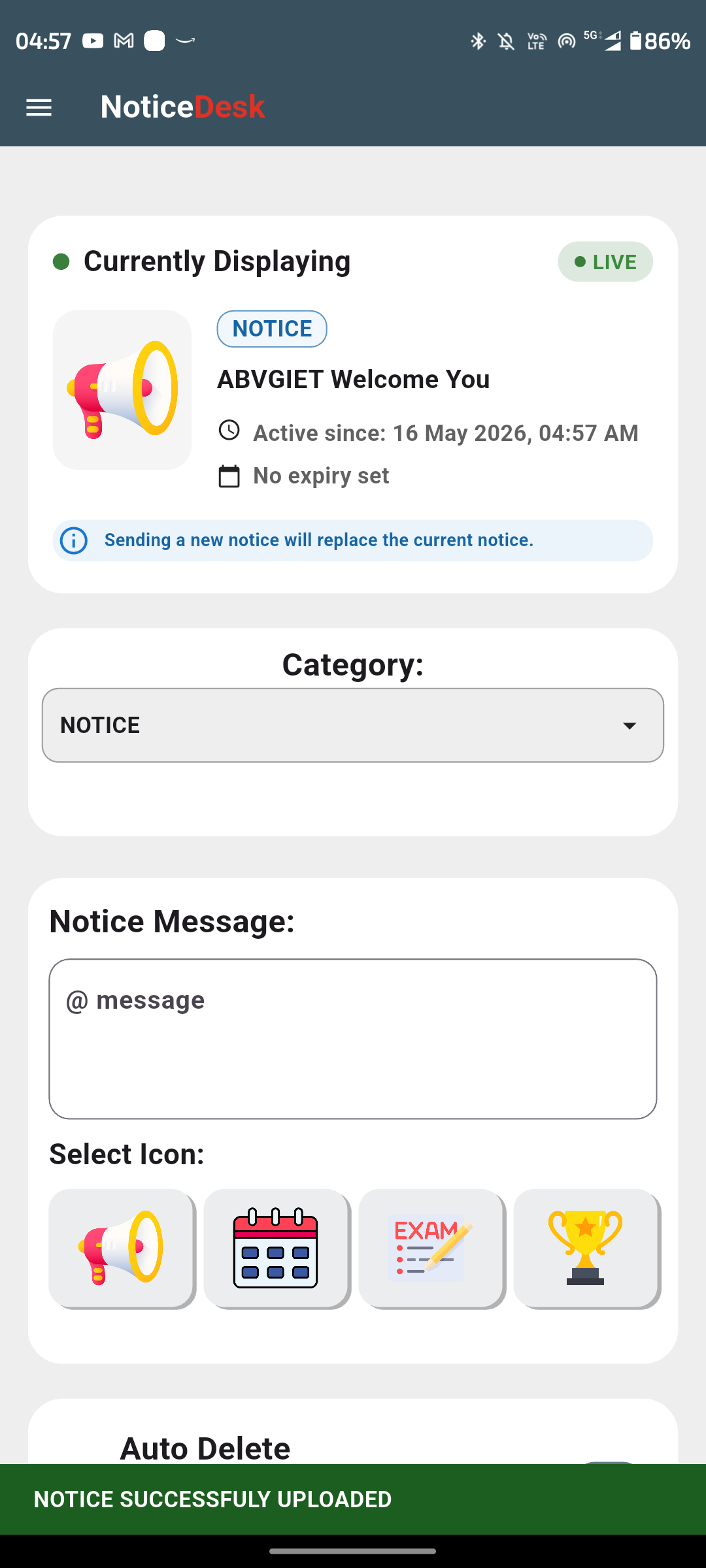

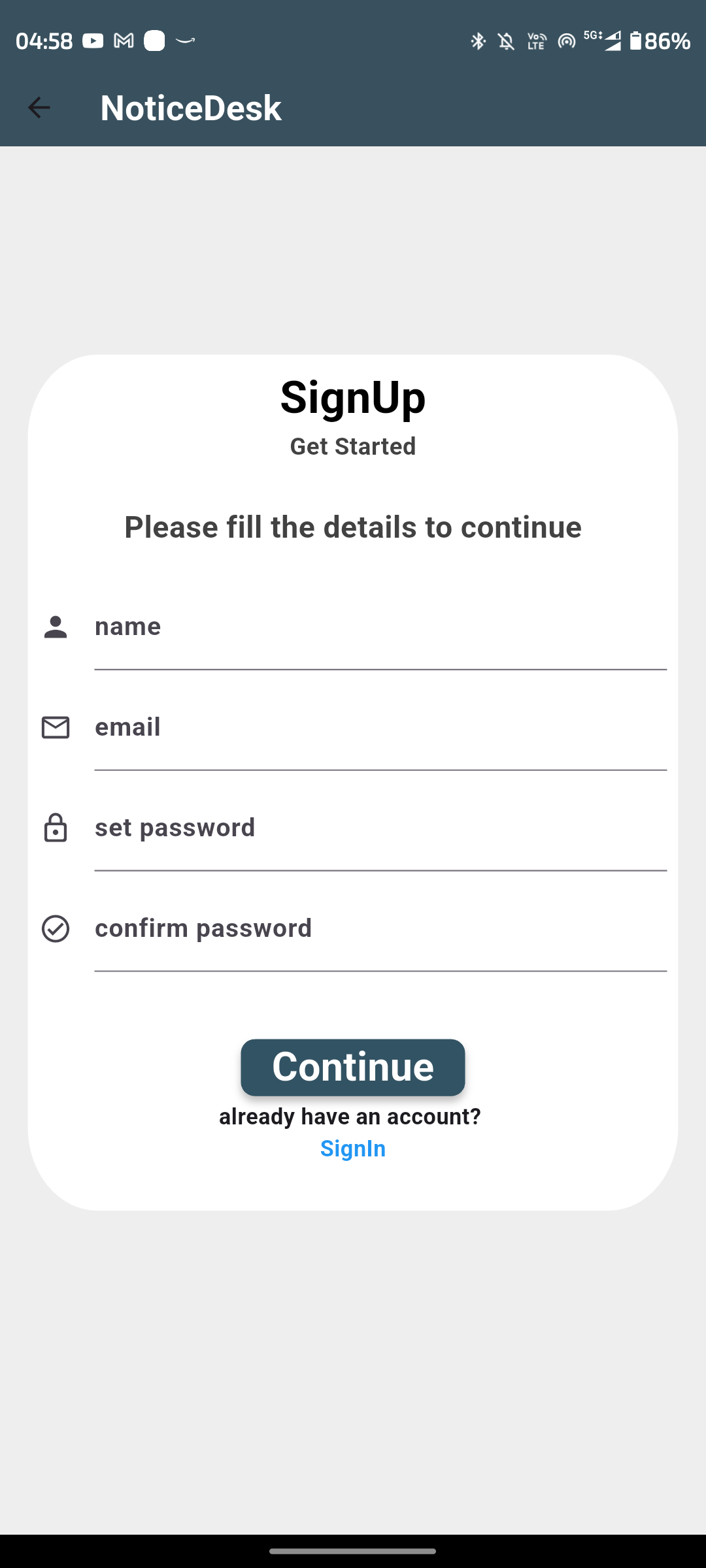

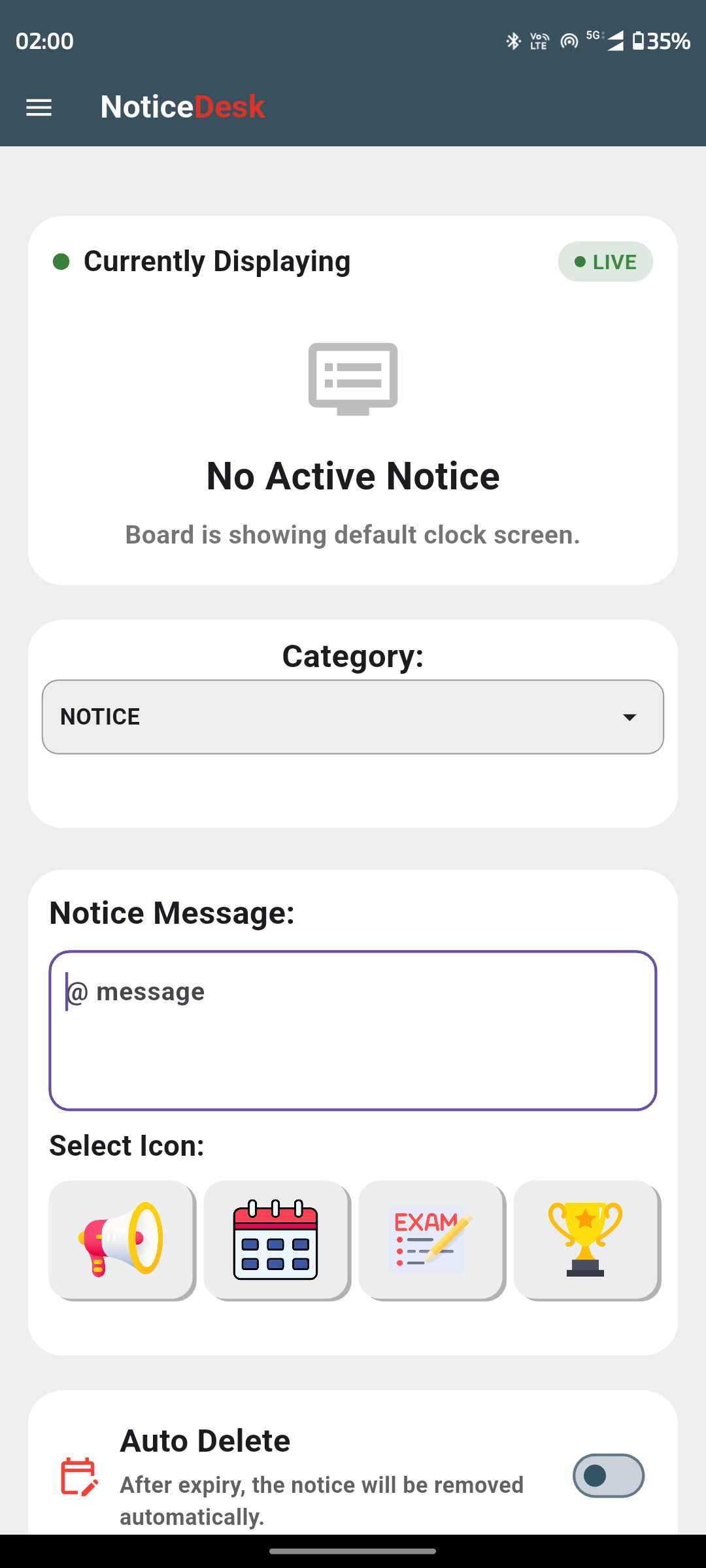

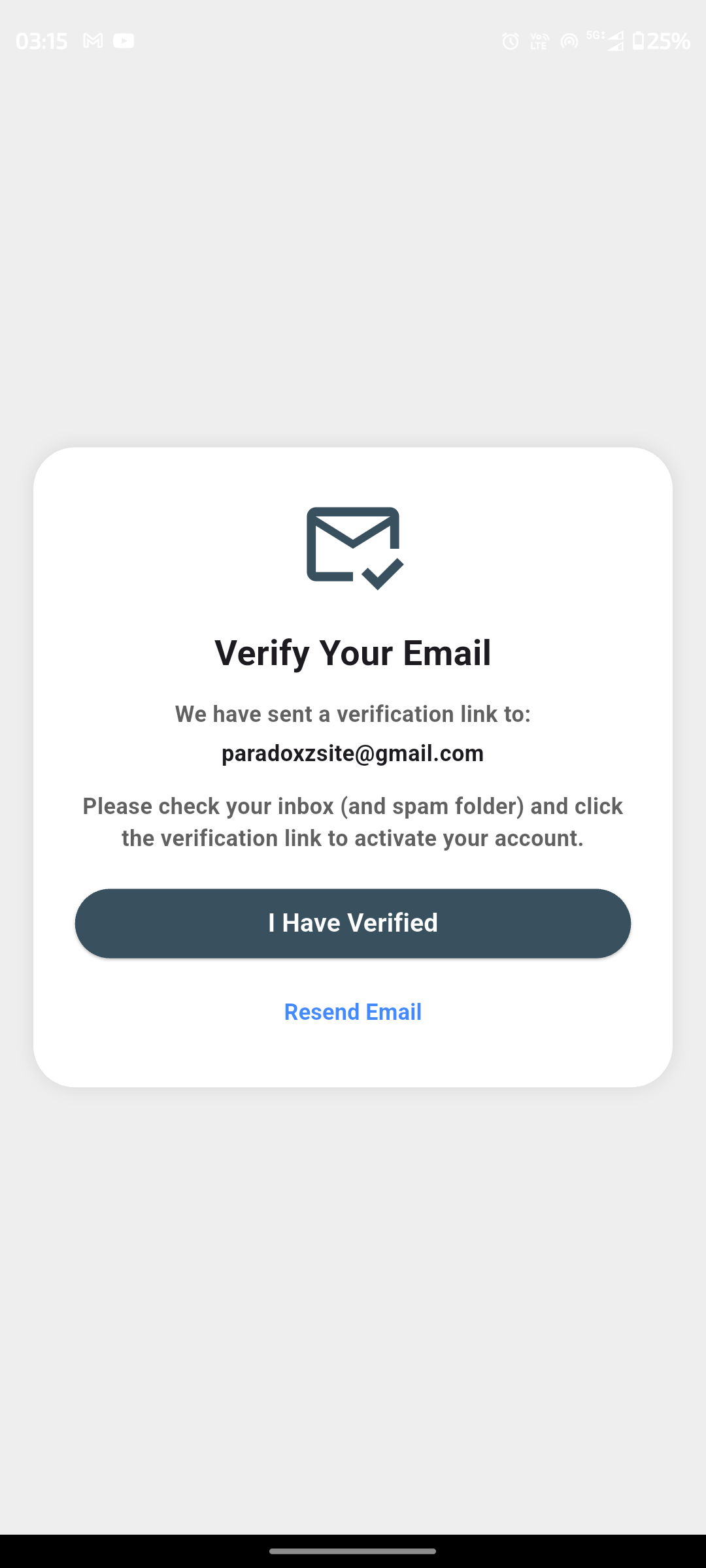

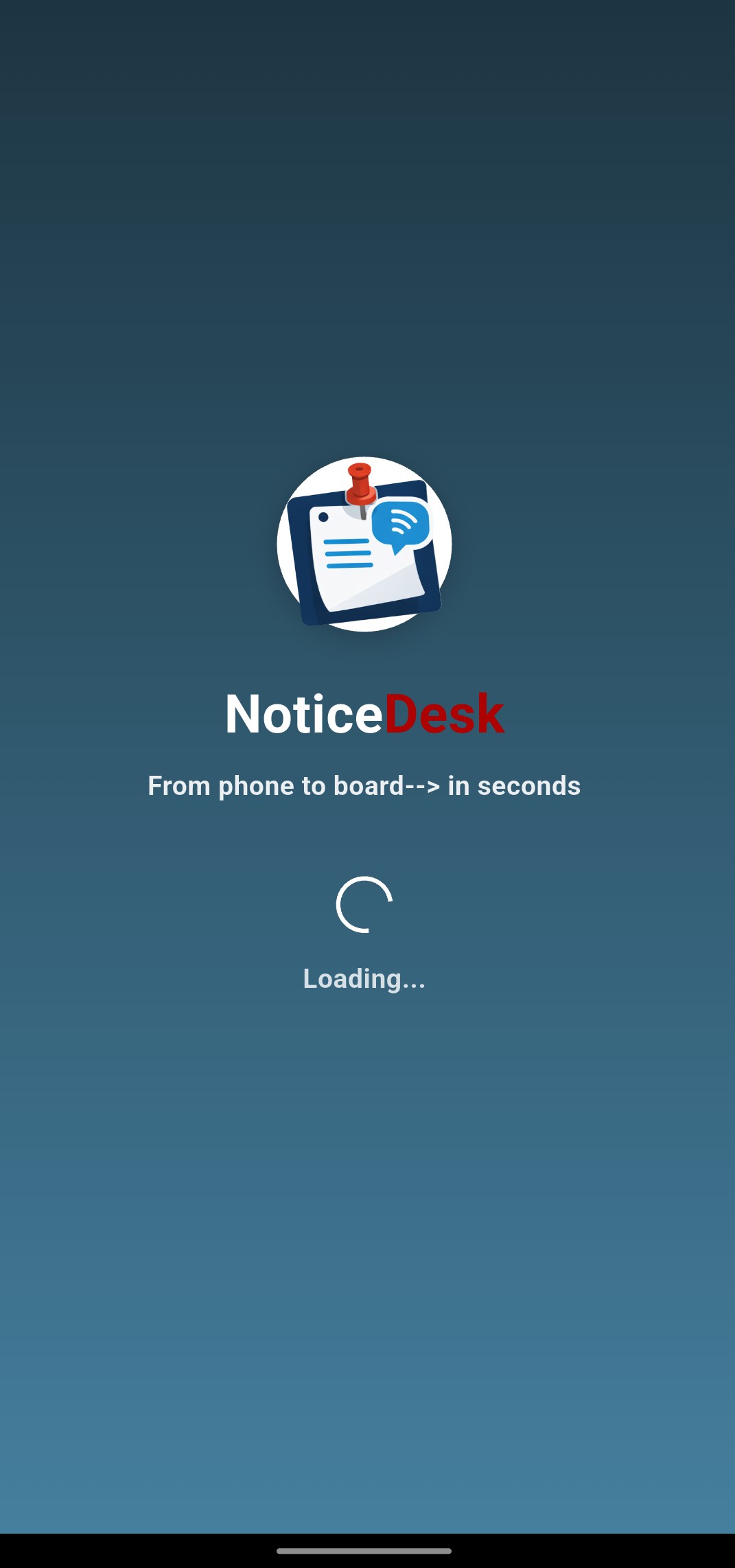

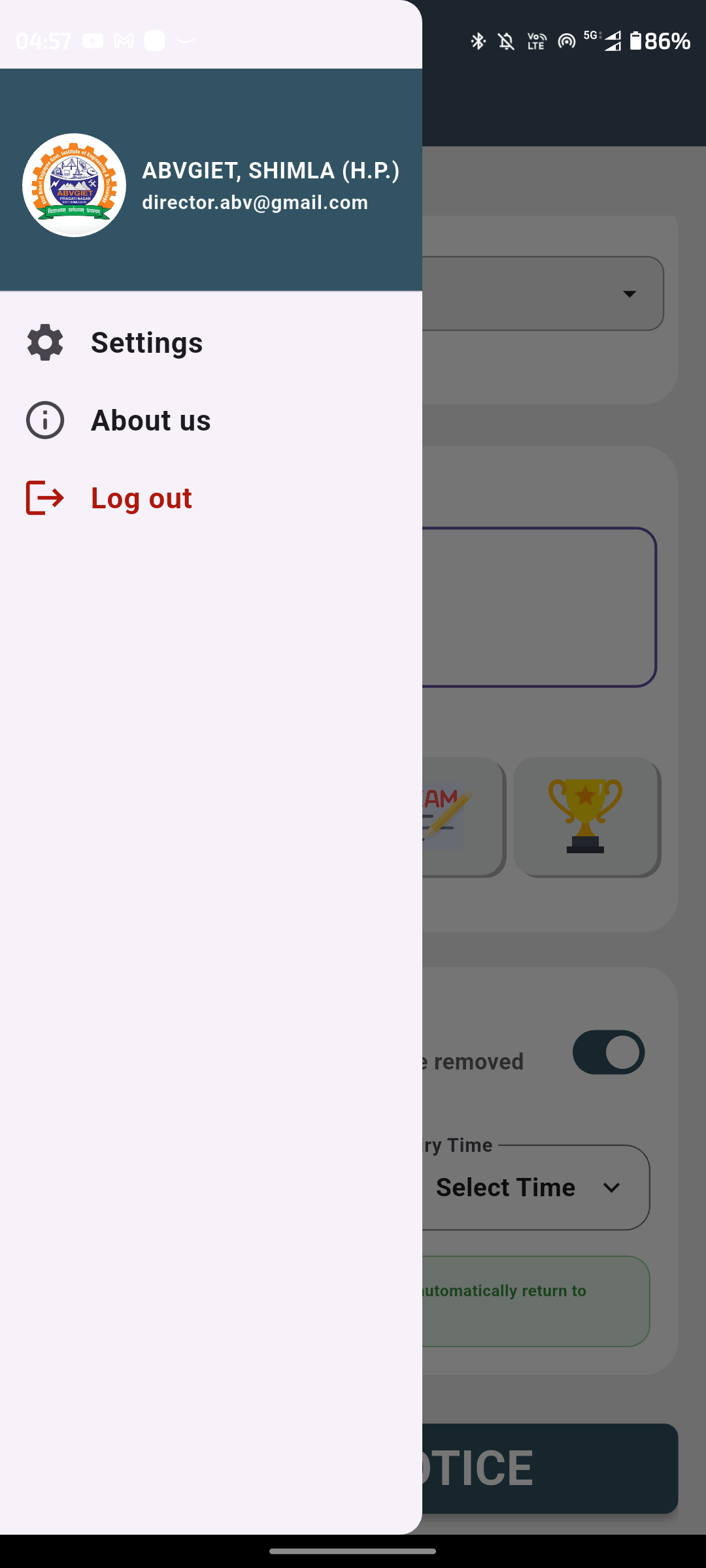

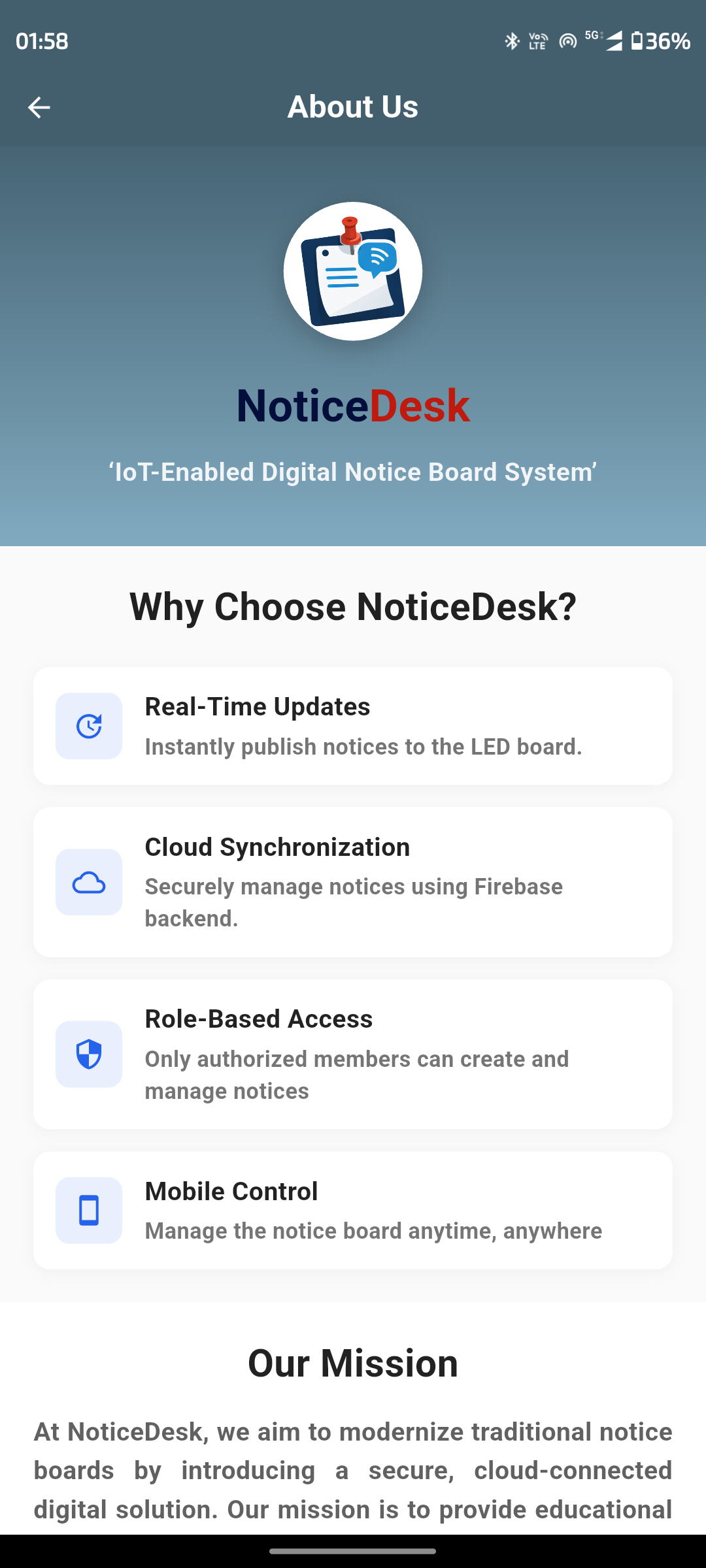

Complete Flutter application interface including realtime broadcasting, category management, scheduling, and synchronization controls.
FUTURE EXPANSION
PROJECT DEMONSTRATION
